Halo-Compatible H-Type 3-Wire System

Halo Compatible Track Lighting Heads (20W / 30W)

Name: Halo Compatible Track Lighting Heads (20W/30W Dimmable) - 5-Year Warranty | HMINLED
SKU: BJ White-3040W
Availability: InStock

Precision architectural spotlight engineered for North American 3-wire 1-circuit H-track rails. Powered by high-density COB arrays delivering up to 120 lm/W, museum-grade CRI ≥ 90 color fidelity, smooth TRIAC/ELV dimming, and cold-forged thermal management backed by a 5-Year Commercial Warranty.

CRI ≥ 90 True-Color COB

120 lm/W High Efficacy

5-YEAR Warranty

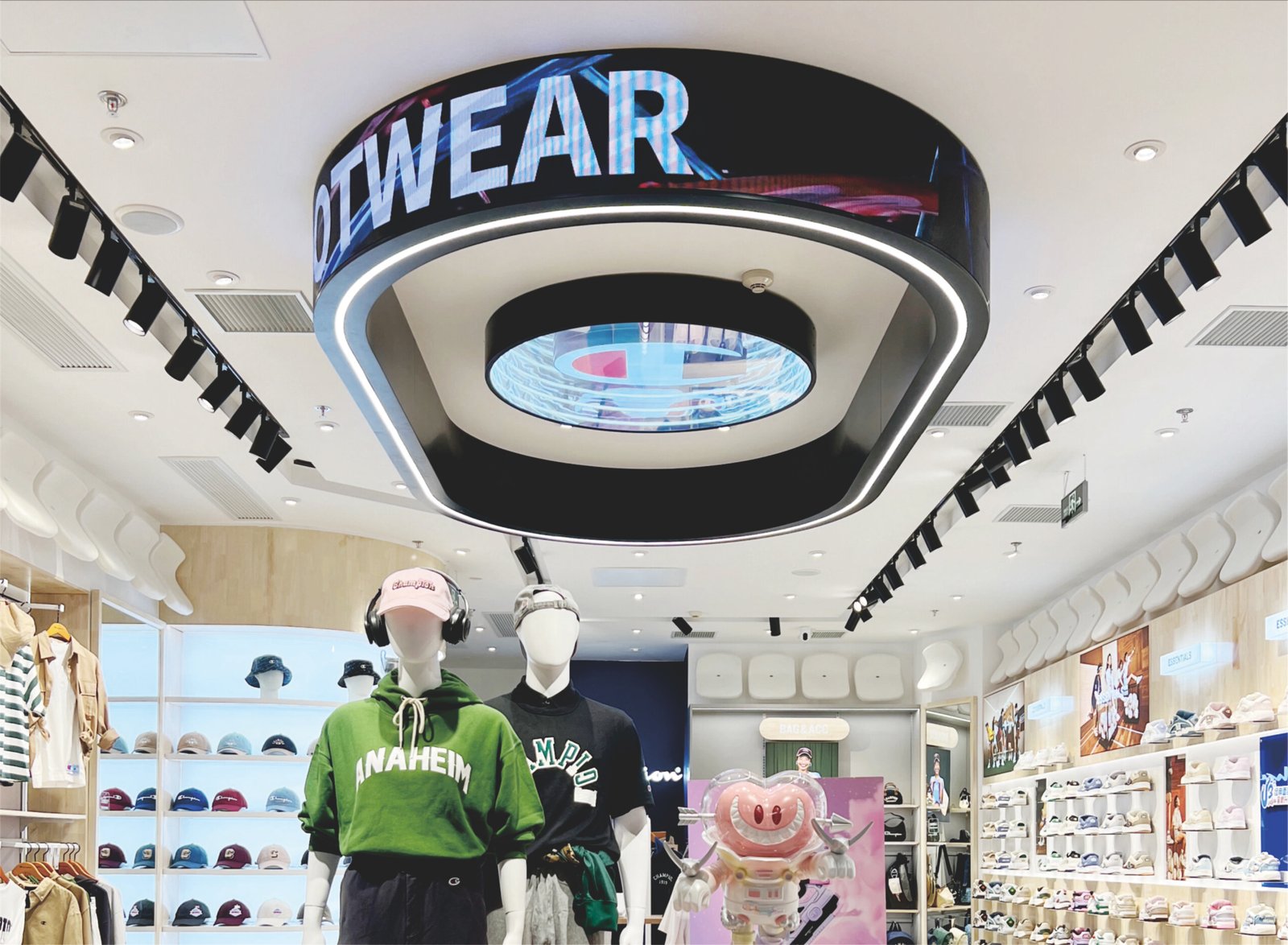

Halo Compatible Track Lighting Heads 3-Wire Dimmable LED Spotlight

BJ-HT3W Series • Architectural Spotlight

01 / ENGINEERING & OPTICS

Precision H-Type Connection & Optical Control

Standardized single-circuit 3-wire mechanics paired with interchangeable optical reflectors.

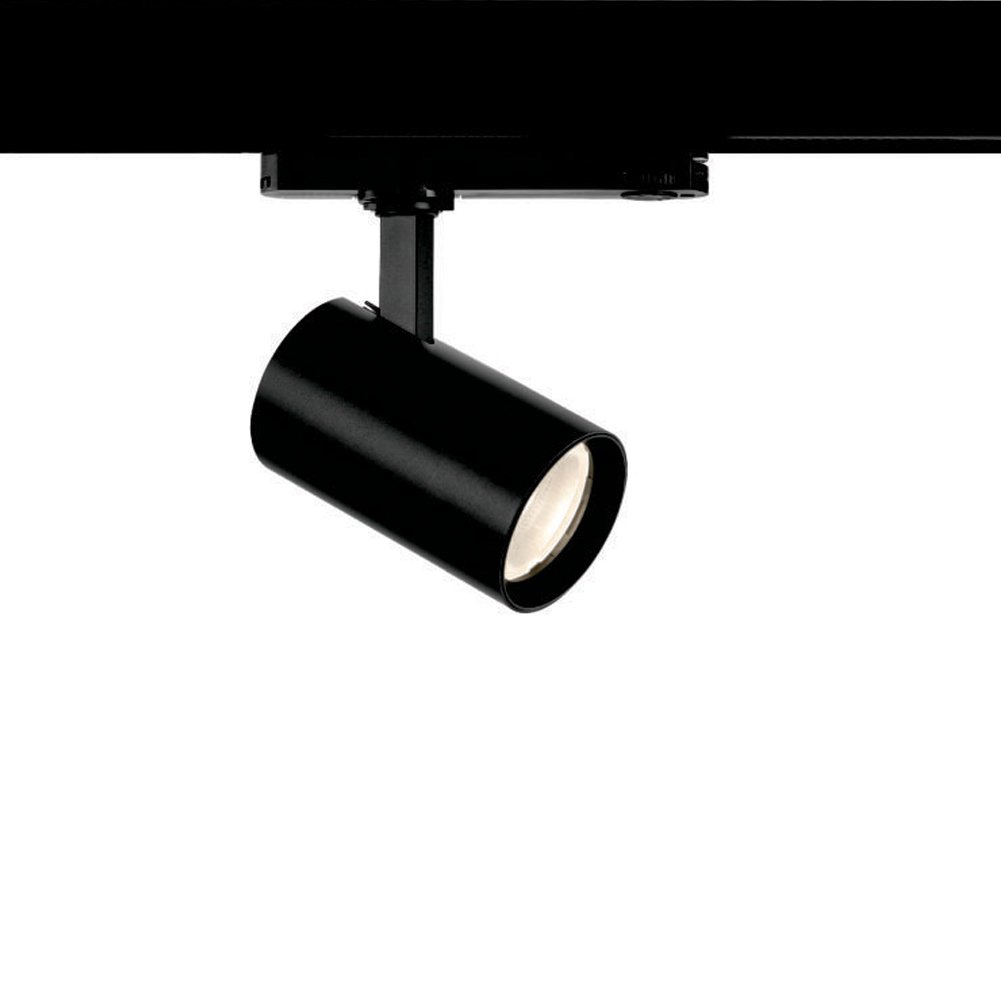

Halo Compatible 3-Wire Track Adapter Mechanism

Adapter Architecture

H-Type 3-Wire Lock Mechanism

Features 2 parallel flat copper contact pins (Live & Neutral) on one sidewall and an offset grounding tab on the reverse. The tool-free 90° twist-and-lock lever ensures instant, secure locking into standard Halo tracks.

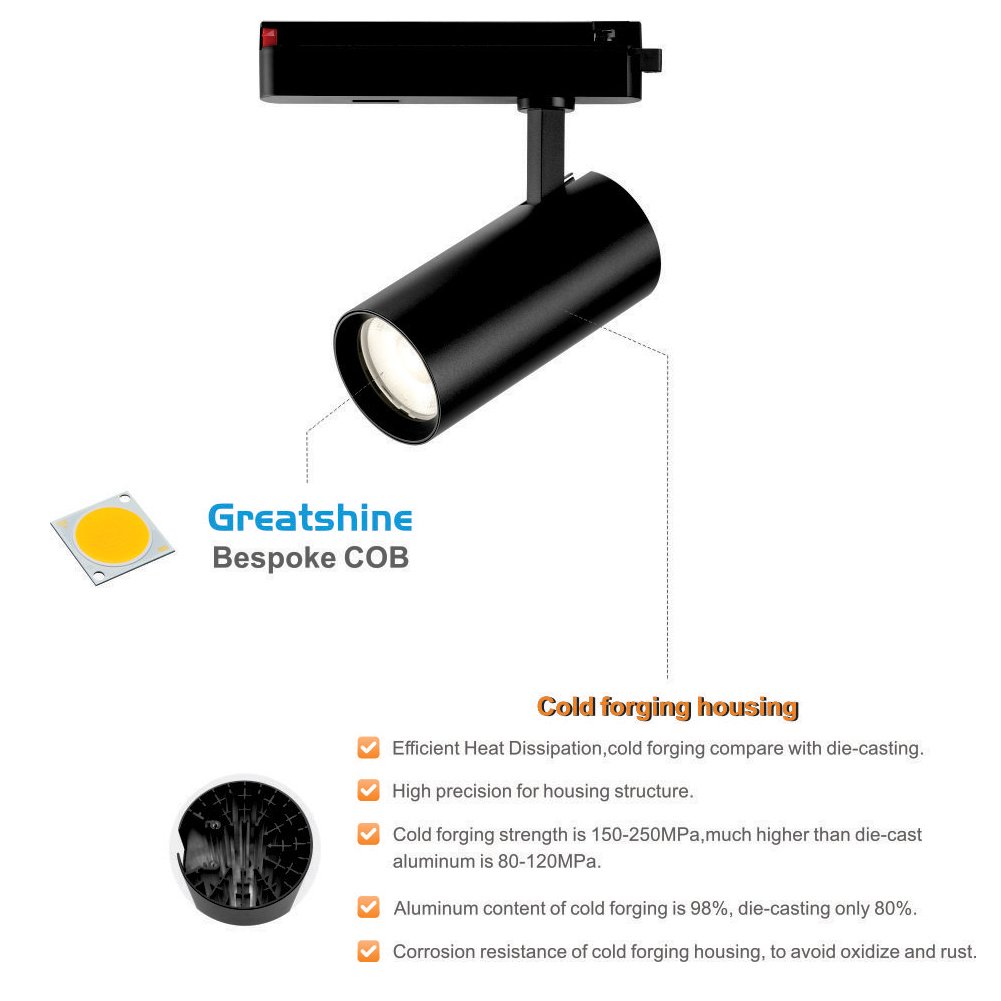

High CRI 90 LED Track Light Optics and Color Rendering

Optical Engine

CRI ≥ 90 Museum-Grade Fidelity

Commercial COB engine with high R9 values restores authentic merchandise colors across 3000K Warm, 4000K Neutral, and 5000K Daylight CCTs. Paired with 15°, 24°, and 36° interchangeable reflectors.

02 / SERIES SPECIFICATIONS

Model Configurations & System Fit

Available in 20W compact and 30W high-output commercial configurations.

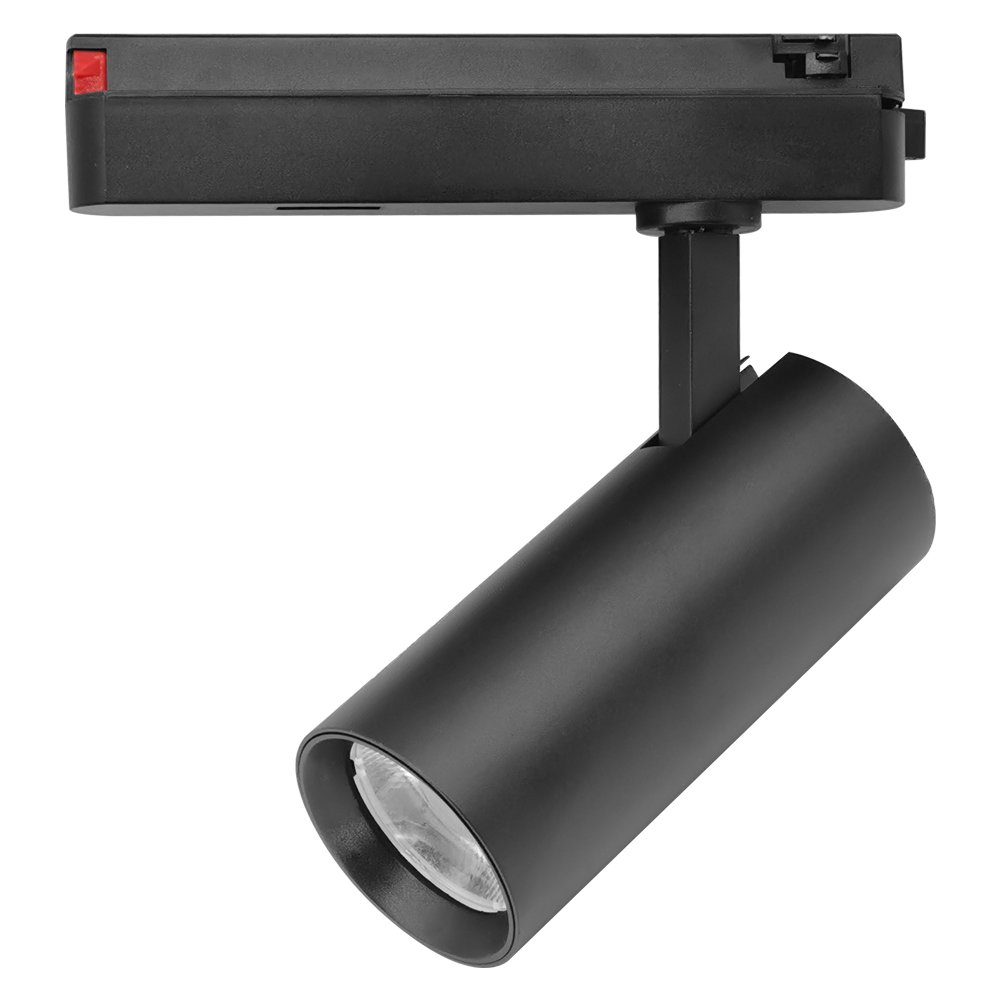

Standard Commercial

BJ-HT3W-20W

20W | 2,000–2,400 Lumens

Efficacy: 100–120 lm/W
Voltage: AC 110V–120V / 277V
Dimming: TRIAC / ELV 10%–100%
Best For: Residential & Retail Accenting

High Output Flagship

BJ-HT3W-30W

30W | 3,000–3,600 Lumens

Efficacy: 100–120 lm/W
Voltage: AC 110V–120V / 277V
Dimming: TRIAC / ELV 10%–100%
Best For: Galleries, Showrooms & High Ceilings

Track Standard

H-Type 3-Wire Fit

15/16″ (24mm) Track Channel

Compatibility: 100% Halo & WAC Rails
Aiming: 350° Rotation / 90° Tilt
Thermal: Cold-Forged Aluminum
Warranty: 5-Year Replacement

03 / TECHNICAL SPECIFICATIONS

Performance & Engineering Parameters

Comprehensive electrical, optical, and mechanical specifications.

Product Model	BJ-HT3W Series (BJ-HT3W-20W / BJ-HT3W-30W)
Track System Compatibility	Standard 3-Wire 1-Circuit H-Type (Halo / WAC Compatible)
Wattage Options	20 Watts / 30 Watts
Luminous Output	20W: 2,000–2,400 lm \| 30W: 3,000–3,600 lm
Luminous Efficacy	100 lm/W (Standard) / 120 lm/W (High Efficacy Edition)
Color Temperature (CCT)	3000K Warm White / 4000K Natural White / 5000K Daylight
Color Rendering Index	CRI ≥ 90 (High-Fidelity R9 ≥ 50)
Beam Angle Options	15° Spot / 24° Medium / 36° Flood (Interchangeable)
Input Voltage	AC 110V–120V (Residential) / AC 277V (Commercial 50/60Hz)
Dimming Protocol	TRIAC / ELV Smooth Dimming (10%–100% Flicker-Free)
Aiming Range	350° Horizontal Rotation / 90° Vertical Tilt
Housing & Thermal	Cold-Forged 98% Pure Aluminum (Matte Black / White)
Lifespan & Warranty	50,000 Hours (L70) \| 5-Year Factory Replacement Warranty

04 / SPECIFIER FAQ

Contractor & Specifier Guidelines

Key installation, dimming, and system verification answers.

Will these track heads fit my existing Halo rail?

Yes. These fixtures use standard 3-wire H-Type adapters designed for seamless slide-in fit into genuine Halo track rails, WAC H-series rails, and commercial 3-wire single-circuit extrusions.

What does the 5-Year Commercial Warranty cover?

The BJ-HT3W series is backed by a 5-Year Factory Replacement Warranty covering the COB light engine, driver electronics, and thermal integrity under standard operating conditions.

Can I dim these fixtures with a wall dimmer switch?

Yes. The 110V–120V models are fully compatible with North American TRIAC and ELV wall dimmers (including Lutron Diva, Skylark, Caséta, and Leviton Decora) offering 10%–100% smooth dimming.

How do I choose between 15°, 24°, and 36° beam angles?

Select 15° for high ceilings (>12 ft) and focal displays, 24° for standard mannequin/artwork framing, and 36° for broad wall washing and even ambient room illumination.
