Architectural Lighting System

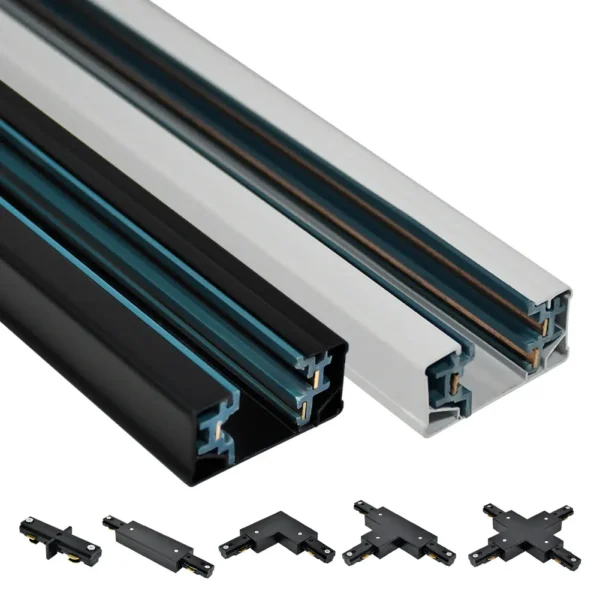

Commercial Extruded Aluminum Track Channel and Power Grid

Name: Architectural Extruded Aluminum Track Channel System for Commercial Lighting - Surface and Suspended Modular Power Rail in 1m to 3m Lengths - bojolight.net
SKU: BJ-TRK-ACC-SKI
Availability: InStock

Precision engineered from heavy-gauge 6063-T5 aluminum alloy, this structural power track system provides a rigid, sag-free backbone for high-performance track luminaires across expansive commercial, retail, and architectural interiors.

6063-T5 Extrusion Alloy

20A Max Capacity

0-180 Deg Modular Articulation

Engineering Quick Spec

Standard Lengths: 1.0m, 1.5m, 2.0m, 3.0m
Conductor Core: Dual Solid Copper Strips
Finish Options: Matte Black / Architectural White
Mounting Modes: Surface Fastening / Cable Hanging
Input Rating: 100-277V AC, 50/60Hz (20A Max)

Bojo Architectural Standard – Series 6302

01 / ENGINEERING & TOPOLOGY

Structural Rigidity & Continuous Power Routing

Precision dimensional tolerances combine with modular conductive joiners for complete ceiling layout freedom.

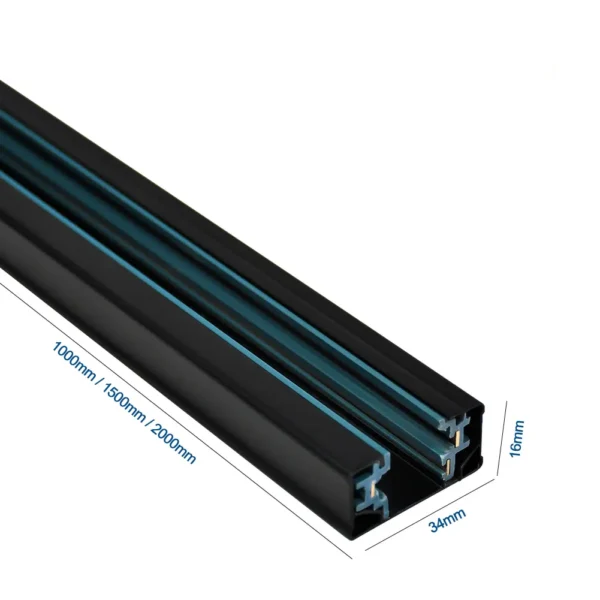

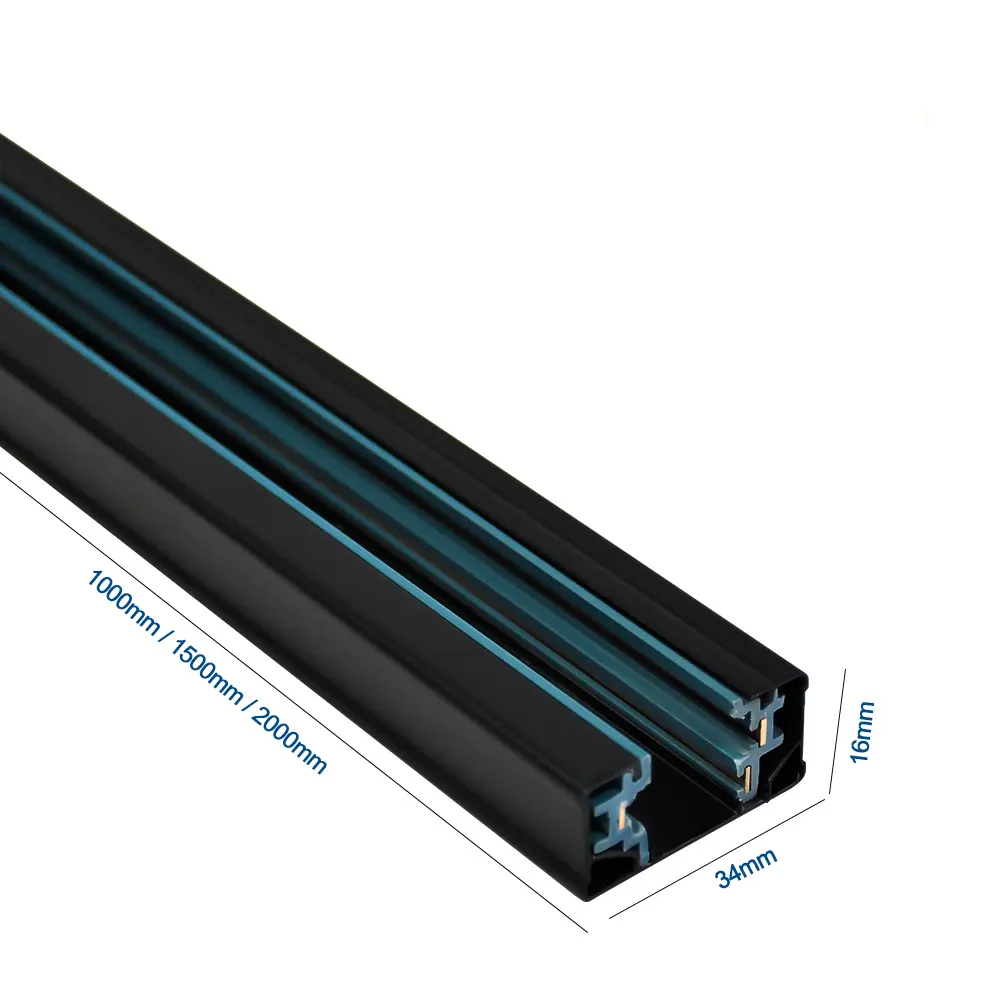

Profile Architecture

Standardized Profile Dimensions

Thick-walled 6063-T5 aluminum housing eliminates center-span sagging and physical twisting under multi-fixture loads. Internal flame-retardant channels securely house dual high-purity copper busbars for reliable contact engagement.

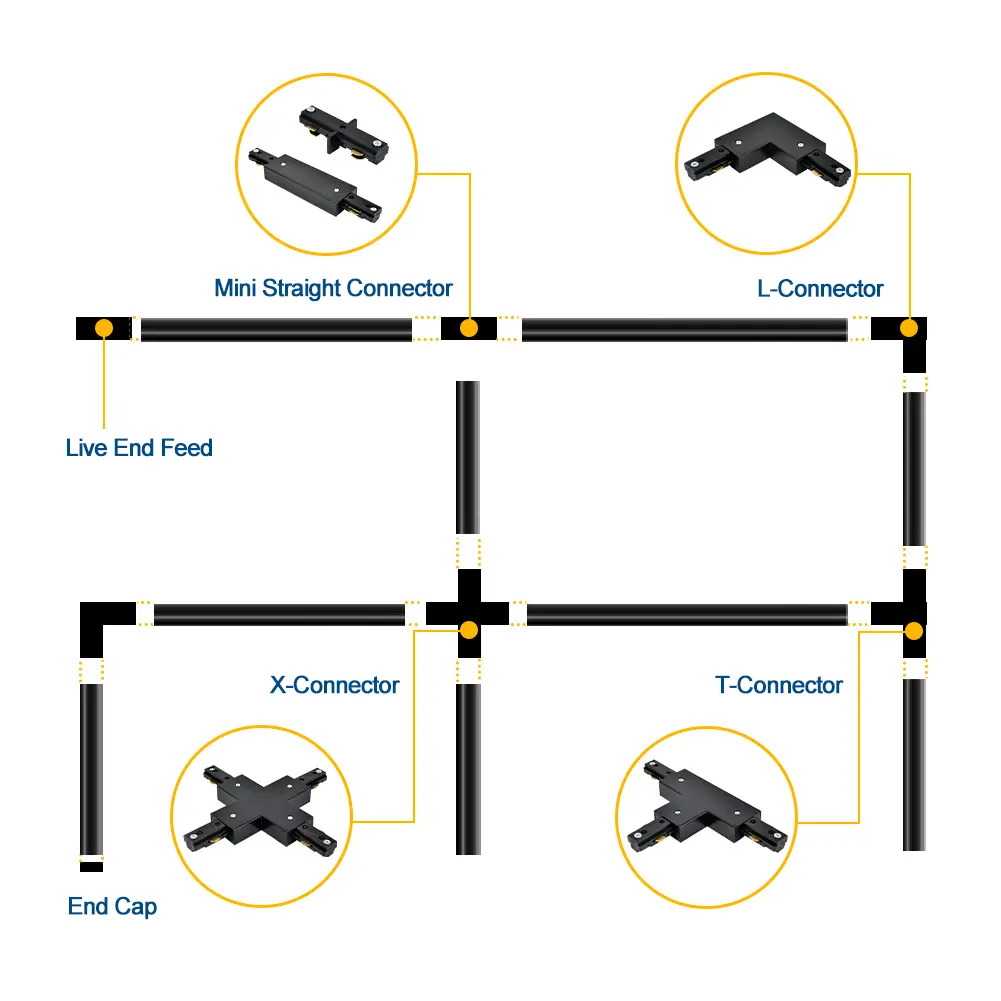

Modular Track Lighting Ceiling Grid Layout Diagram with Connectors and Power Feeds

Grid Interconnectivity

Modular Ceiling Layout Topologies

Form continuous linear runs, closed rectangular perimeter grids, or complex angular patterns. Modular 90-degree L, 3-way T, 4-way cross, and 0-to-180 degree swivel connectors maintain full circuit continuity without external jumpers.

02 / TECHNICAL SPECIFICATIONS

System Performance Data

Full physical and electrical engineering properties for architectural specification.

Specification Parameter	Engineering Detail
Housing Material	Heavy-Duty Architectural 6063-T5 Extruded Aluminum Alloy
Conductor System	Dual Solid Copper Power Busbars (High Conductivity)
Insulation Channel	High-Impact Flame-Retardant Polycarbonate (UL94-V0 Rated)
Available Lengths	1.0m (3.3ft) / 1.5m (5.0ft) / 2.0m (6.6ft) / 3.0m (10.0ft)
Finish Options	Electrostatic Powder-Coated Matte Black and Pure Architectural White
Mounting Methods	Ceiling Surface Fastening and 1.5m (5ft) Stainless Steel Cable Suspension
Input Voltage Rating	100-277V AC, 50/60Hz (20A Maximum Continuous Circuit Capacity)
Environmental Rating	Dry and Damp Commercial Indoor Applications (IP20)
Target Applications	Retail Flagships, Art Galleries, Corporate Showrooms, Hospitality

03 / SPECIFIER & CONTRACTOR GUIDE

Installation and Planning Guidelines

Key considerations for electrical contractors and lighting designers.

Field-Cut Customization

Aluminum track sections can be cut to custom lengths on-site with a standard miter saw. Internal copper conductors must be trimmed back by 5mm using insulated cutters prior to inserting joiners or end caps.

Fixture Spacing Density

For uniform structural and optical balance, allocate 2 to 3 fixture heads per 1.0m, 3 to 4 heads per 1.5m, 4 to 5 heads per 2.0m, and 6 to 8 heads across continuous 3.0m rails.

Power Feed Integration

Electrical power can enter at track terminals via Live End Feed joiners or at intermediate points using In-Line Center Power Feed connectors with internal conductive jump plates.

Order Consultation & Fulfillment

Because track channel layouts require matched connectors, feeds, and specific freight packaging, please contact our project sales team before placing an order. Direct unconfirmed orders are not processed for shipment.

Weight	N/A
Dimensions	N/A
Option	1.5m (5ft) Stainless Steel Aircraft Suspension Drop Cable Kit, Right-Angle 90-Degree Corner Link (L-Type) – Matte Black, 3-Way Branching Tee Joiner (T-Type) – Pure White, 3-Way Branching Tee Joiner (T-Type) – Matte Black, 4-Way Cross Grid Intersection (X-Type) – Pure White, 4-Way Cross Grid Intersection (X-Type) – Matte Black, Flexible Corrugated Articulated Link (0-180 Deg) – Pure White, Flexible Corrugated Articulated Link (0-180 Deg) – Matte Black, Multi-Angle Swivel Pivot Joint (0-180 Deg) – Pure White, Multi-Angle Swivel Pivot Joint (0-180 Deg) – Matte Black, Right-Angle 90-Degree Corner Link (L-Type) – Pure White, In-Line Center Live Power Feed Adapter – Matte Black, In-Line Center Live Power Feed Adapter – Pure White, 2.0m (6.6ft) Extruded Power Track Channel – Pure White, 2.0m (6.6ft) Extruded Power Track Channel – Matte Black, 3.0m (10.0ft) Extruded Power Track Channel – Pure White, 3.0m (10.0ft) Extruded Power Track Channel – Matte Black, Straight In-Line Seamless Coupler (I-Type) – Pure White, Straight In-Line Seamless Coupler (I-Type) – Matte Black, 1.5m (5.0ft) Extruded Power Track Channel – Matte Black, 1.5m (5.0ft) Extruded Power Track Channel – Pure White, 1.0m (3.3ft) Extruded Power Track Channel – Matte Black, 1.0m (3.3ft) Extruded Power Track Channel – Pure White
