Architectural 48V Low Voltage Magnetic Track Lighting System – Recessed Surface and Suspended Rails with Modular Spot and Linear Fixtures (24V Customization Available)
COMMERCIAL NOTICE: Pricing for Reference Only – Consult Before Ordering
This listing features a modular DIY fixture system. Track channels and 48V/24V external power supplies are sold separately. Direct online checkout without prior technical consultation and BOM verification is invalid and will not be dispatched.
Architectural 48V DC low-voltage magnetic track lighting system (with 24V DC project customization available). Features tool-free magnetic snap insertion and mechanical safety locks for flexible layout reconfigurations.
Voltage Platform: Safe 48V DC constant voltage (24V DC custom drivers on demand).
Modular Interchangeability: Mix linear diffusers, dark-light grilles, folding accent bars, track spots, pendants, and wall washers.
Optical Performance: Museum-grade CRI Ra 90+ / Ra 97 with precision anti-glare optics.
Intelligent Control: Non-dim, 0-10V, DALI-2, Tuya Zigbee 3.0, and Bluetooth Mesh protocols.
Track Compatibility: Suitable for trimless plaster-in, flanged recessed, surface, and pendant channels.
Contact customer service with your ceiling plan or fixture schedule for a complete Bill of Materials and official project quote.
Commercial Procurement & System Configuration Policy
Multi-Product Modular System – Pricing for Reference Only
This product page showcases a modular DIY 48V DC magnetic track lighting ecosystem with multiple interchangeable optical fixtures. Track rails and external DC power supplies are not included by default and must be configured separately according to your ceiling plan and linear meterage.
CRITICAL ORDER NOTICE: Direct checkout orders placed without prior engineering consultation, Bill of Materials (BOM) verification, and stock confirmation are invalid and will not be dispatched. Please contact our project desk for an official custom quotation.
Low-Voltage Architectural System
Architectural 48V DC Magnetic Track Luminaire Ecosystem
Engineered for refined commercial boutiques, contemporary galleries, and luxury architectural residences. Operates on touch-safe 48V DC constant voltage (with custom 24V DC driver calibration available upon request). Freely DIY and snap interchangeable linear, grille, and spotlight modules into any position without tools.
48V DCSafe DC (24V Custom)
Ra 90+Color Fidelity
Tool-FreeMagnetic Snap-In

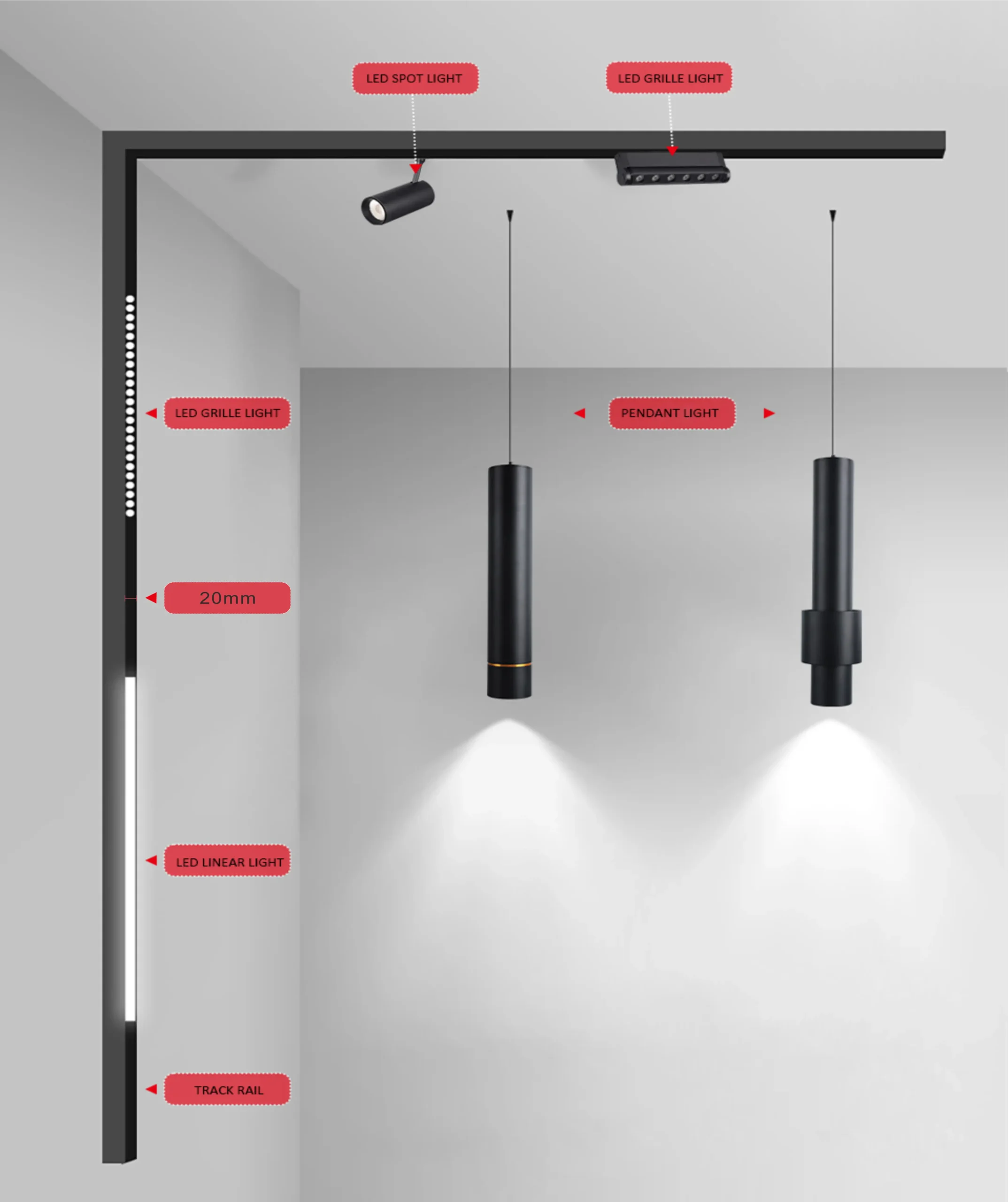

FIG 1.0 – 48V DC Magnetic System Ecosystem
01 / MODULAR FIXTURE COLLECTION A
5 Core DIY Magnetic Light Modules
Freely mix and match these 5 interchangeable lighting modules within a single track channel.

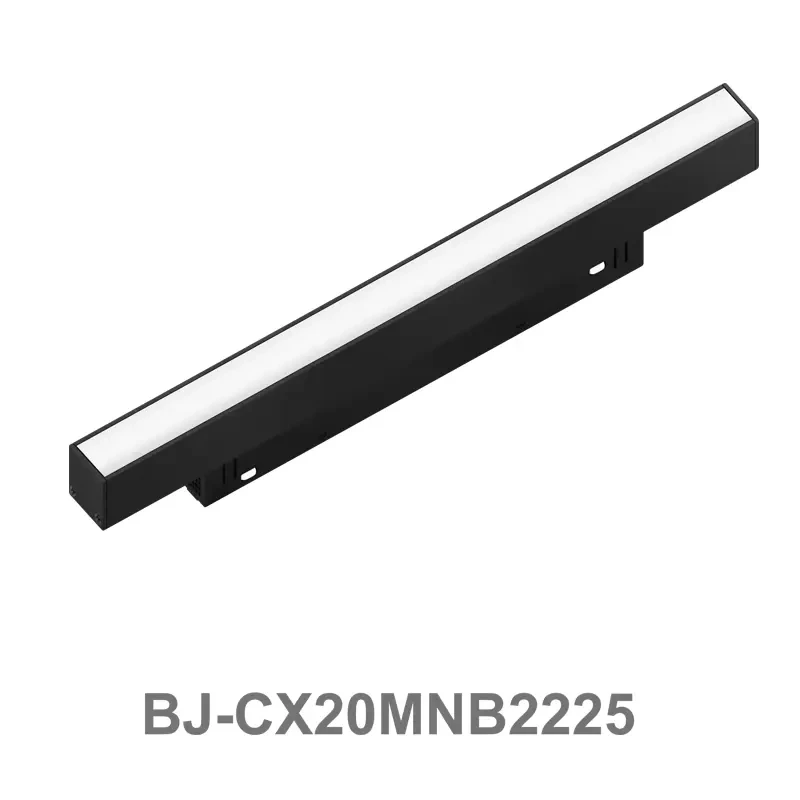

Module 01
Linear Diffuser Module
Module 02
Dark-Light Grille Spot
Module 03
Foldable Accent Bar

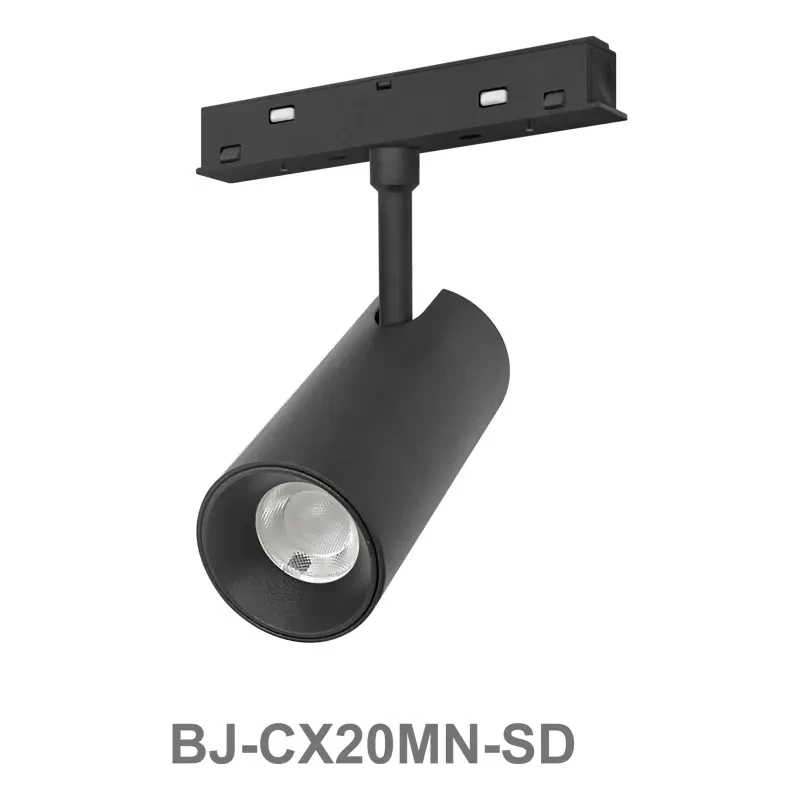

Module 04
Track Head Spotlight
Module 05
Micro Pendant Cylinder

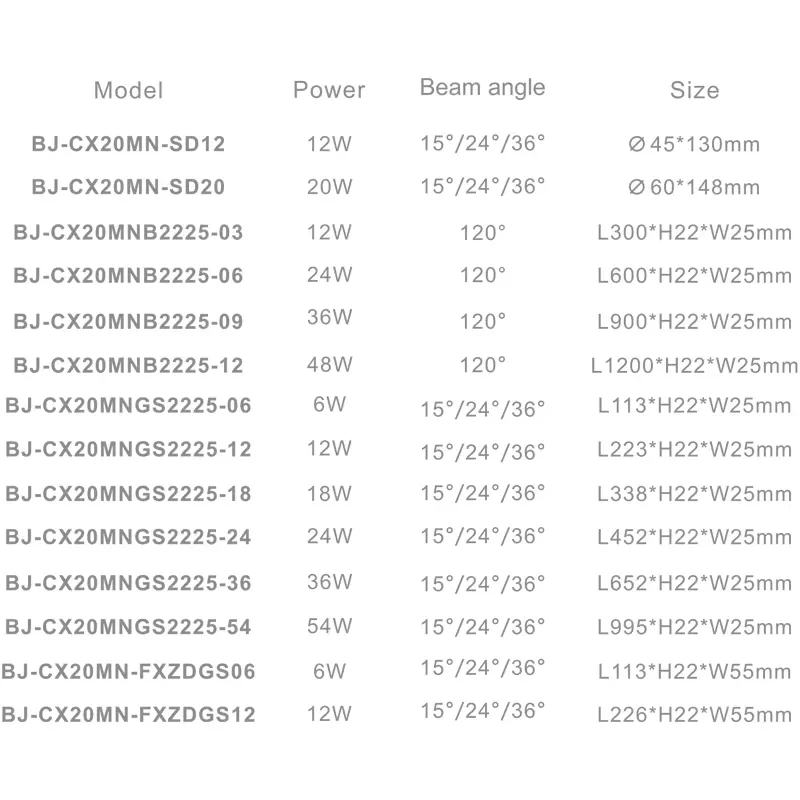

Engineering Selection Chart for Collection A (5 Models)
Refer to dimensions, wattages, beam optics, and lumen output ratings below before specifying.
02 / MODULAR FIXTURE COLLECTION B
2 Specialized Architectural Modules
Supplemental high-lumen architectural fixtures for expansive ceiling wash and directional accenting.
Specialized Series
Architectural Wall Wash & Flood Module
High-efficiency uniform beam distribution engineered for seamless wall grazing, perimeter ambient illumination, and wide retail display zones.
Specialized Series
Adjustable Precision Framing Spotlight
Multi-axis rotation spotlight delivering high-candela center beam intensity for highlighting fine art, jewelry cases, and focal retail displays.
Engineering Selection Chart for Collection B (2 Models)
Detailed dimensional profiles, electrical input data, and optic beam spreads for specialized models.
03 / TRACK RAILS & DRIVER INTEGRATION
Track Extrusions and DC Power Supplies
Complete your installation by configuring matched track profiles and external drivers.
Track Profile Options: We manufacture matching 6063-T5 aluminum magnetic channels in Trimless Recessed (Plaster-In), Flanged Recessed, Ceiling Surface Mount, and Suspended Cable Pendant configurations (1.0m, 1.5m, 2.0m, and 3.0m lengths in sandblasted matte black and white).
DC Transformer Sizing: External Mean Well or isolated architectural 48V DC power supplies (100W, 200W, 350W) should be selected based on total fixture load with a 20 percent reserve buffer. Contact our engineering desk to calculate driver capacities and track layout quantities.
04 / SYSTEM SPECIFICATIONS
Electrical & Optical Properties
Full physical and photometric engineering properties for architectural specification.
Specification Parameter
Engineering Detail
Input System Voltage
Standard 48V DC Constant Voltage (24V DC Custom Calibration Available)
Installation / DIY Mode
Tool-Free Magnetic Absorption with Mechanical Safety Lock Latches
Color Rendering Index
CRI Ra 90+ / Ra 97 (High Color Rendering Standard Across All Modules)
Color Temperatures (CCT)
2700K Warm White / 3000K Soft White / 4000K Neutral White / 5000K Cool White
SELV Class III Extra-Low Voltage, IP20 Indoor Commercial Rating
05 / SPECIFIER & CONTRACTOR GUIDE
Project Ordering & FAQ
Essential information for preparing your project quote and Bill of Materials.
01
Why are track rails not included in this listing?
Every architectural project requires different rail mounting types (trimless plaster-in, surface, or suspended) and specific linear runs. We quote track rails and accessories separately to match your exact ceiling specifications.
02
How do I request custom 24V DC production?
If your project utilizes existing 24V DC bus infrastructures, off-grid solar arrays, or vehicle/marine platforms, please inform us before ordering. We calibrate LED drivers and light engines specifically for 24V DC input.
03
Why is direct purchase without inquiry invalid?
Because magnetic track systems require matched external transformers, live power feeds, corner joiners, and specific fixture module quantities. Unchecked direct orders cannot be fulfilled or shipped.
04
How to receive a formal project quotation?
Send your CAD ceiling layout, desired track meterage, selected module types from the charts above, and control requirements to our sales desk. We will generate a complete Bill of Materials with wholesale pricing.
